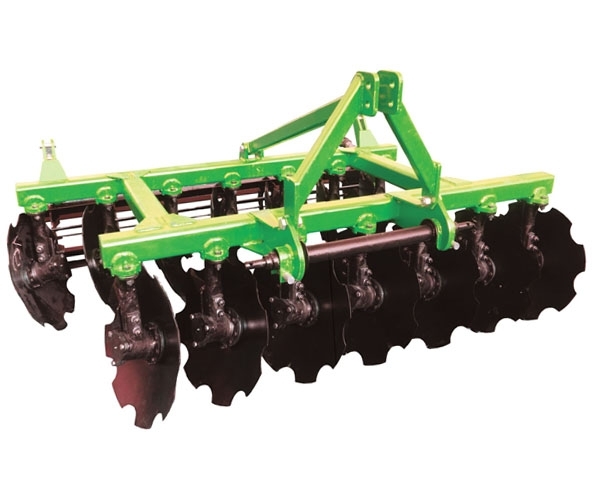

PDL 2.3 Disc harrow lightweight is designed to prepare the soil, not littered with fieldstone and other obstacles, for sowing of cereals and industrial crops by loosening the field surface to a predetermined depth with soil resistivity to 0.9 kg / cm ², the hardness of 35 kgf / cm ² and humidity to 27%.
PD 2.3 Plow lightweight is equipped with 3 disks of boron steel wear of «Veles-Agro».
In a series of PDL disc harrows is used packer roller with stepless adjustment of depth of processing:

Design features plows, lightweight design:

• bracket working body moved under the center of the beam
• the center of gravity closer to the axis of the plow the tractor
• applied lightweight stand working body
• angle of attack of the working body of the disc is fixed at 20
• used a more powerful packer roller bearing (USF USF replaced by 209 210)

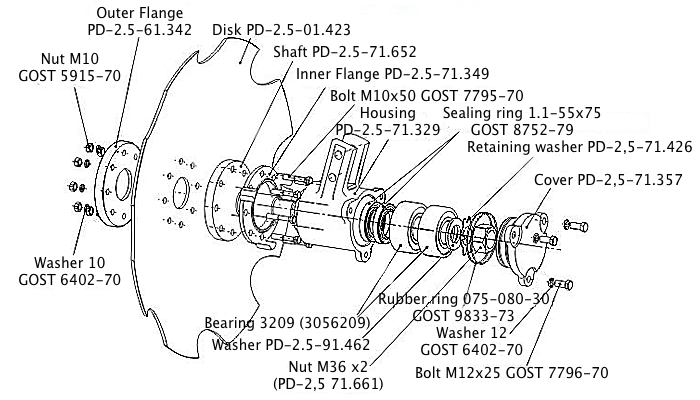

Maintenance-free working body disc harrow PDL-2.3-assembly:

Design advantages unserved housing disc harrow PDL-2.3 (2):
